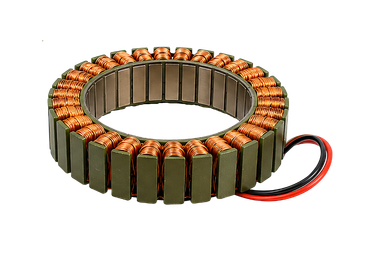

Frameless BLDC Out-Runner Motors
Powerful. Engineered for Motion. New Louneh
Pranshu's Frameless BLDC Out-Runner Motor range combines a compact motor architecture with a broad choice of torque, speed and motor sizes.
Drones
Gimbles
Cranes
Robot Arms

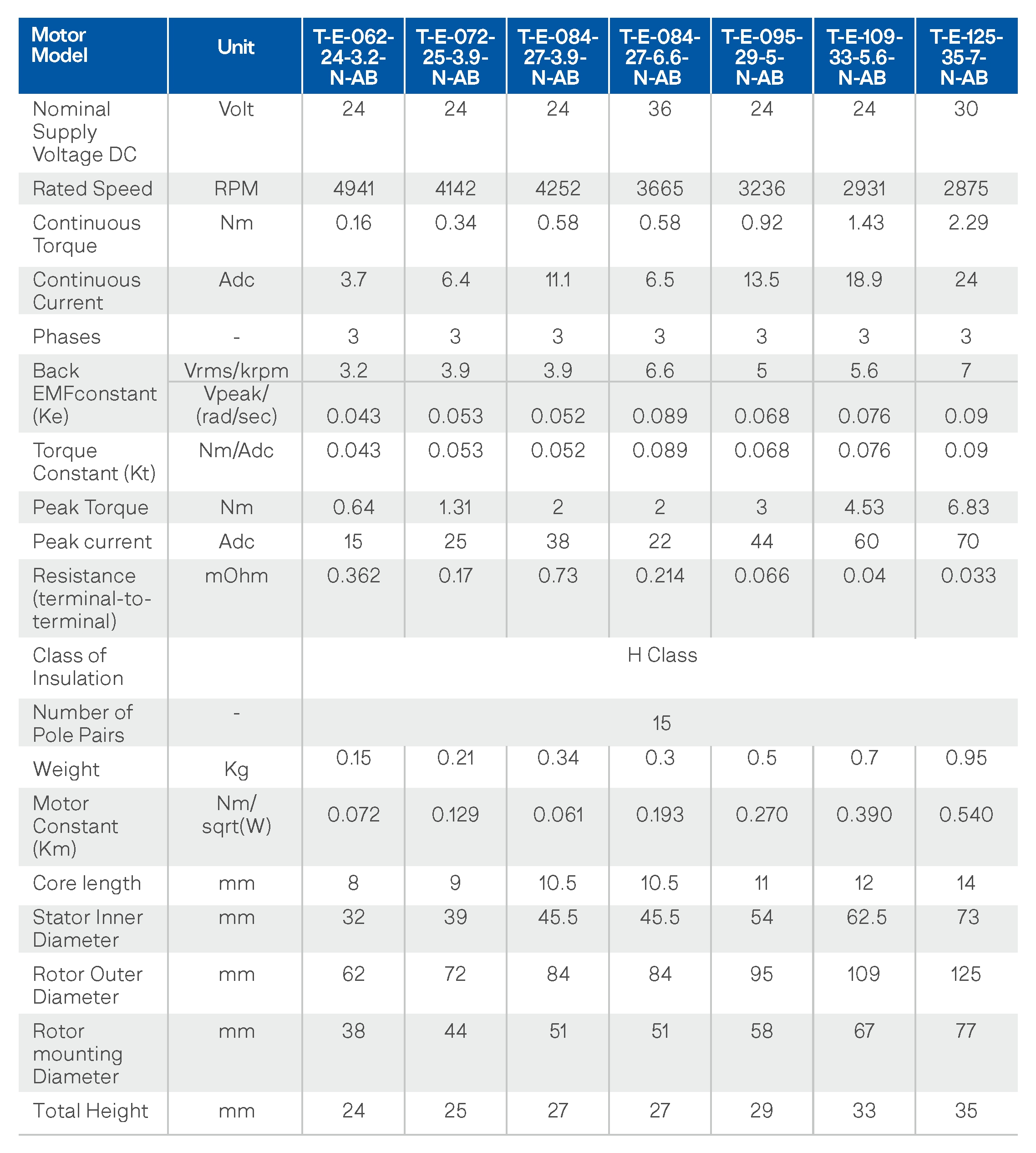

Available across 7 motor variants, the range covers rotor outer diameters from 62 mm to 125 mm, rated speeds from 2,875 to 4,941 RPM and
continuous torque from 0.16 Nm to 2.29 Nm.
With a 3-phase configuration, 15 pole pairs and H- Class insulation, the range gives machine designers multiple options to select the right motor configuration for their requirement.
Frameless BLDC Out-Runner Motors
